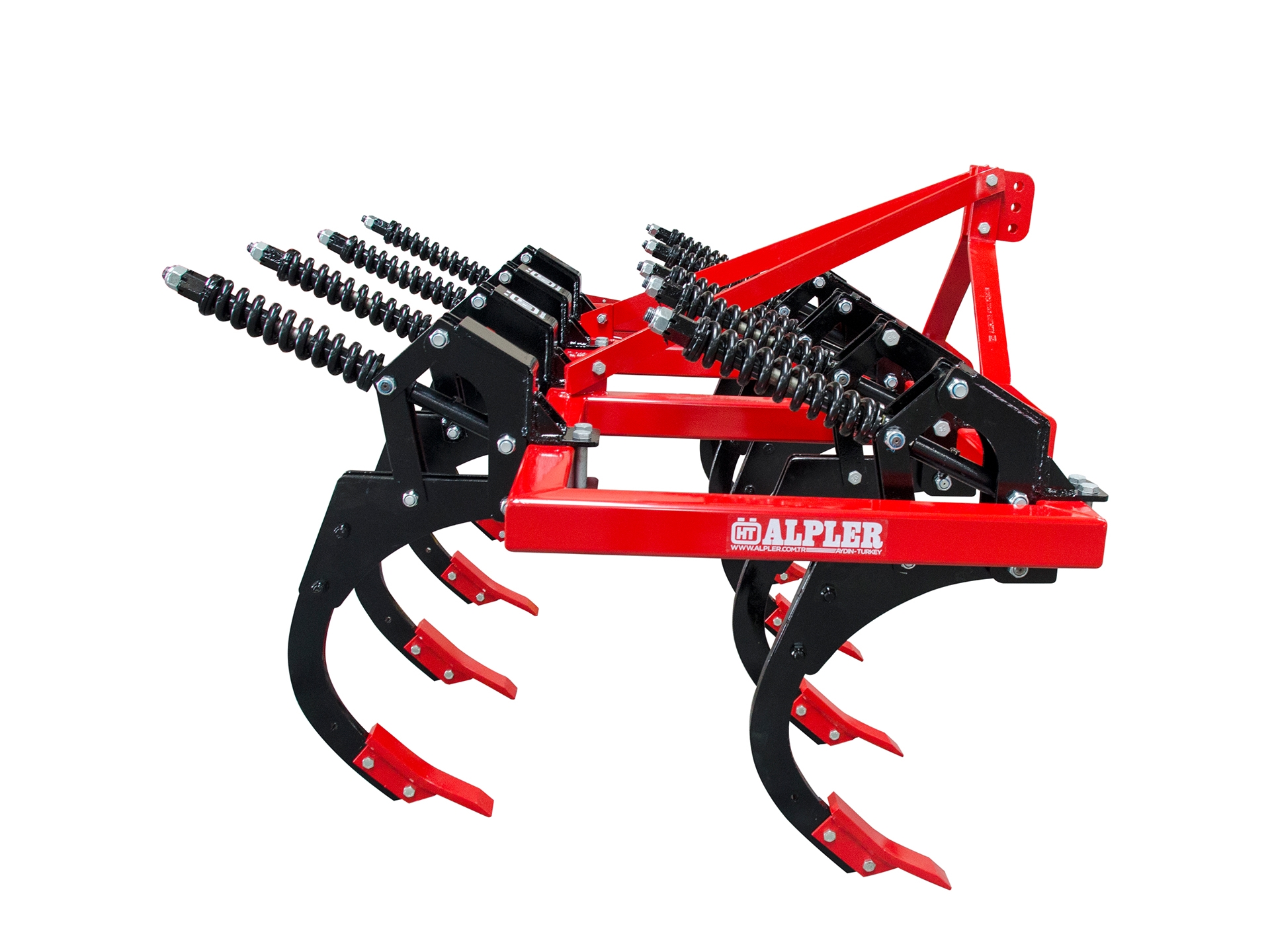

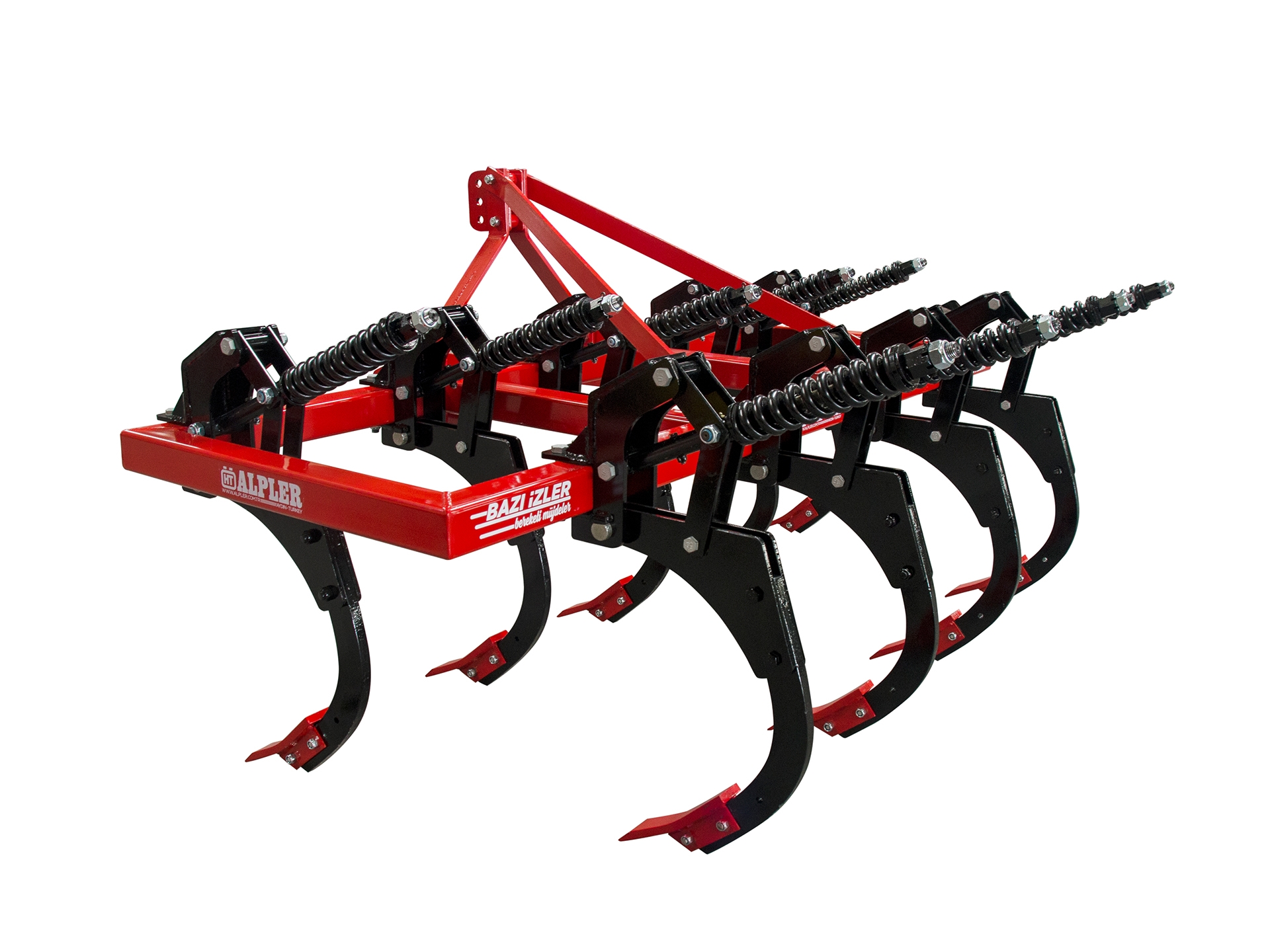

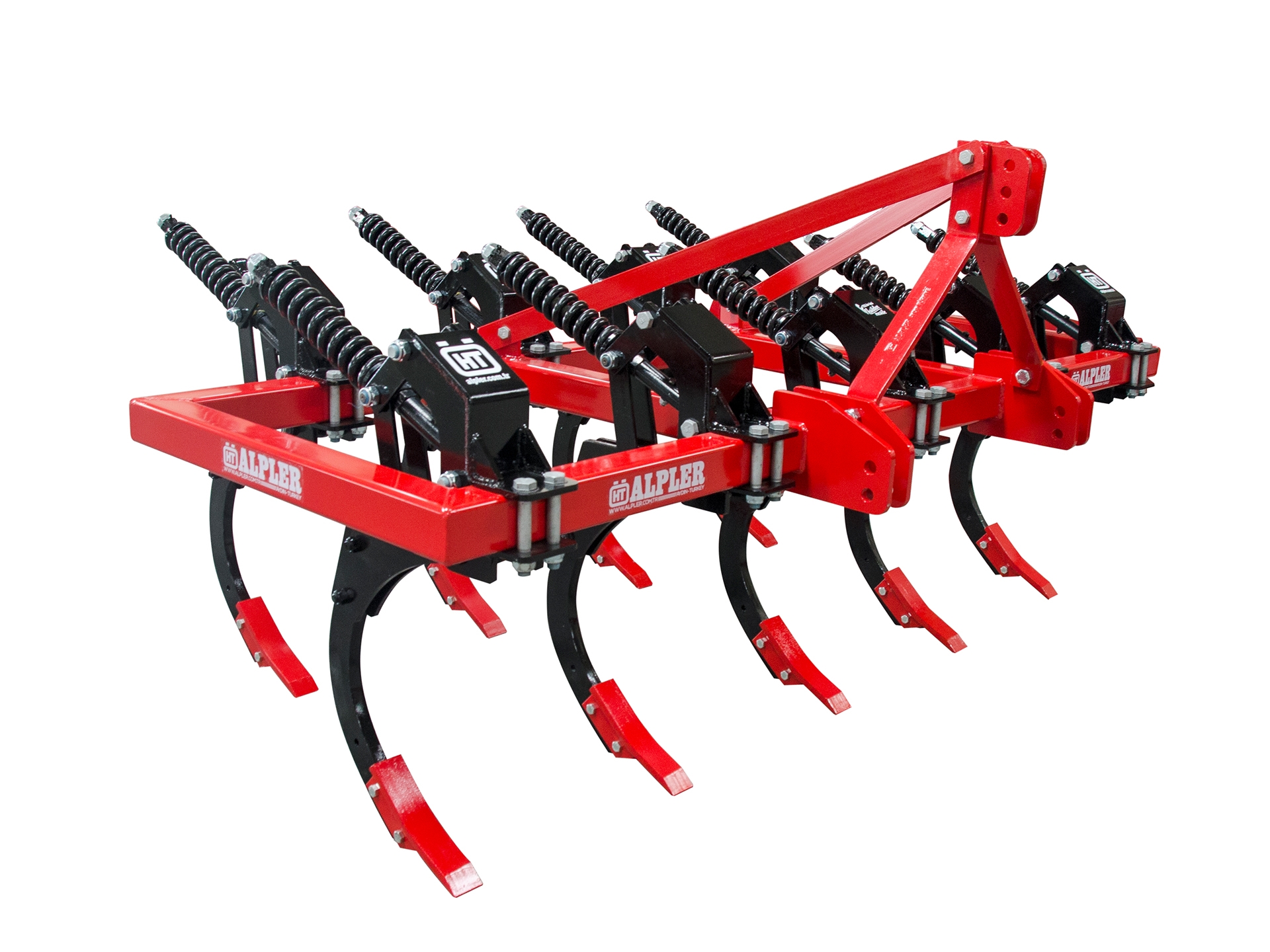

Chisel Plough With Spring

Alpler Yaylı Çizel Pulluk
Alpler Yaylı Çizel Pulluk
Alpler Yaylı Çizel Pulluk

    • - Special alloyed cast steel legs designed to give the most suitable penetration angle for maximum efficiency.

      - Possibility to work in different working widths thanks to adjustable leg spaces.

      - Provides a vibrating and safe working opportunity with special production springs.

      - Each independent spring leg, when it encounters an obstacle, stone, root, etc. only that leg is disabled, which provides an uninterrupted and safe working opportunity.

    • - Roller

      - Leg Wings

    •  Model  Number Of Tines (Pieces) Clearance (CM) Distance Between Beams (CM) Working Width (CM) Working Depth (CM) Weight (KG) Power Requirement (HP)
      YCP 05 5 72,5 100 150 45 610 70-90
      YCP 07 7 72,5 100 215 45 765 90-110
      YCP 09 9 72,5 100 280 45 950 110-130
      YCP 11 11 72,5 100 325 45 1100 130-150
      YCP 13 13 72,5 100 390 45 1350 150-170
      YCP 15 15 72,5 100 460 45 1535 170-200
