    • > Accurate spread pattern.
      > Hydraulic control spinners and multiple drop point adjustment ensuring accurate spreading.
      > Hydraulic drive machines are VRT ready (Variable Rate Technology) and compatible with most GPS systems.
      > Simple and easy to operate ground drive or hydraulic drive machines.
      > Alpler load cells ensure accurate spreading.
      > Ability to customise machine to customer requirements.
      > Stainless option.
      > A commitment to develop products to customer requirements and beyond.

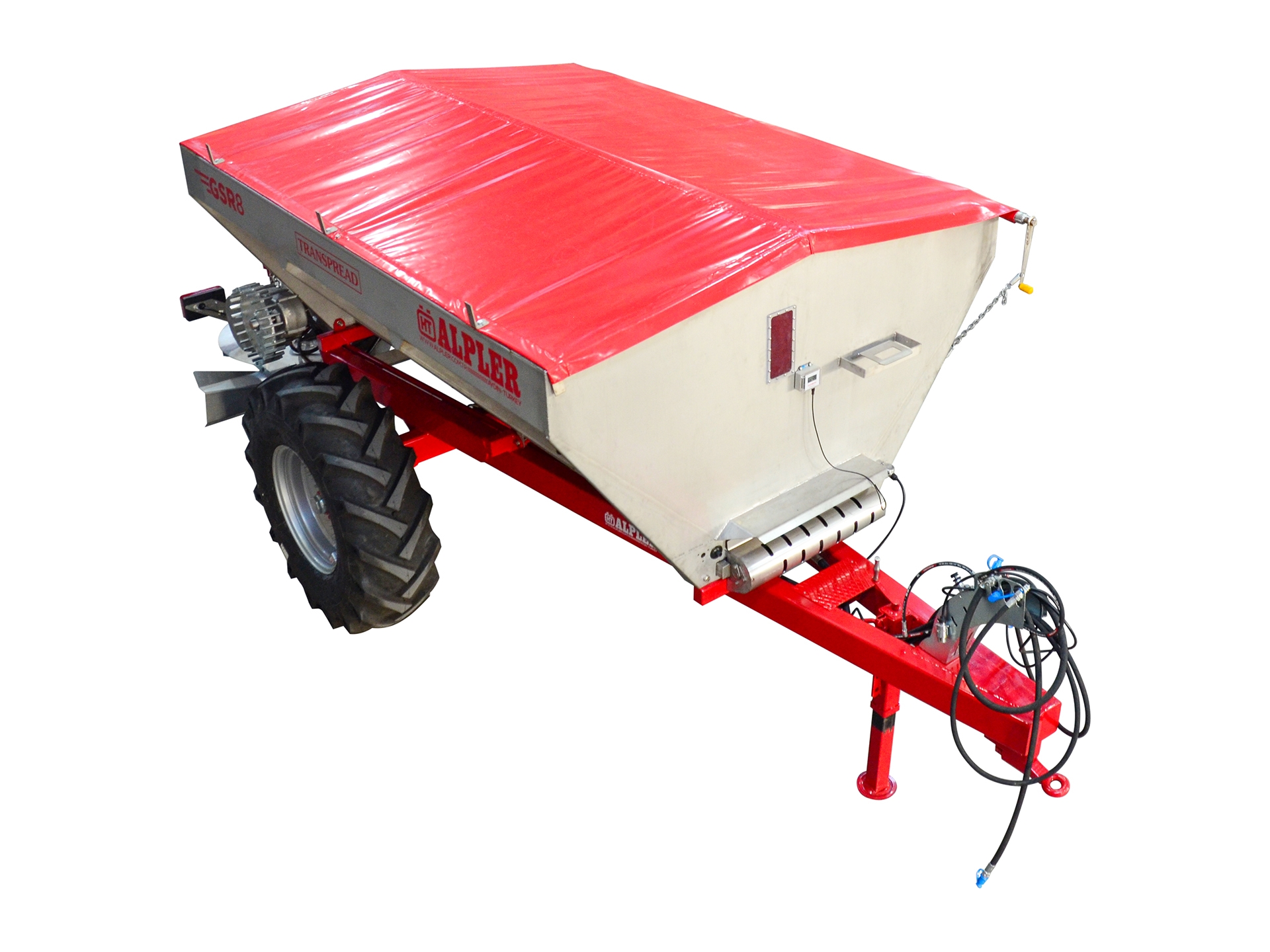

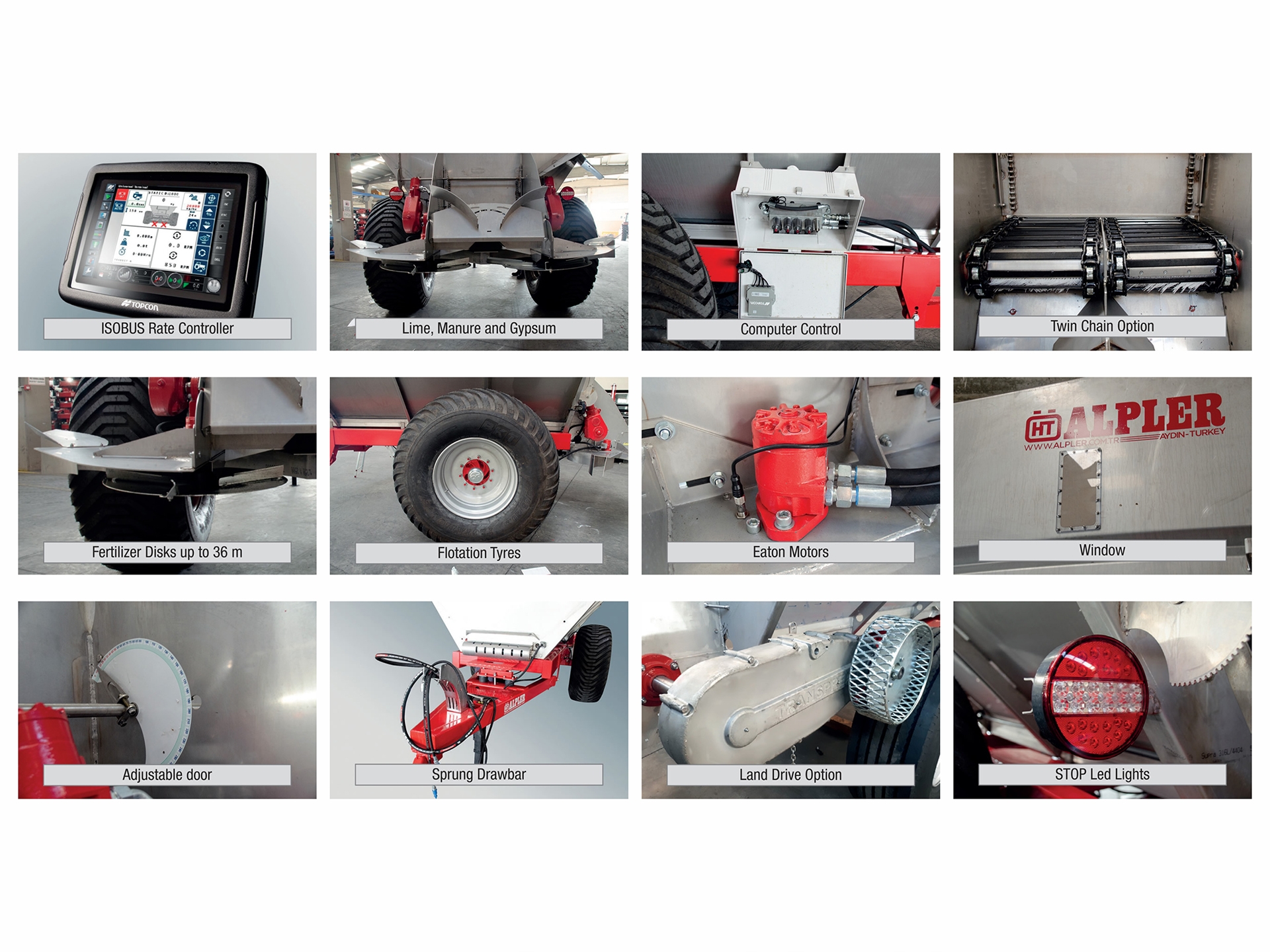

    • > Roll Over Cover

      > Bander Kit

      > Extention Boards

      > Land Drive Option

    •   Model     GSR 3     GSR 4     GSR 5     GSR 8     GSR 10     GSR 11     GSR 13     GSR 15     GSR  20
      CU. Capacity 2,5 3,2

      4,6

      		 6 7,9 9 10,8 12,7 16
      Tonage Fertiliser 3 4 5,5 7,5 9,5 11 12,5 15 20
      Tonage Lime 3,5 4,5 6,4 8,4 11 12,5 15 18 22,5
      Bin Length (mm) 2000 2400 3000 3000 3000 3000 4000 4000 6000
      Bin Width (mm) 1800 1800 1800 2290 2290 2290 2290 2290 2290
      Bin Height (mm) 1068 954 1288 1315 1654 1747 1654 1747 1654
      Conveyor Drive Ground Wh. Ground Wh. Ground Wh. Ground Wh. Ground Wh. Ground Wh. Section Con Section Con Section Con
      Chain Single Single Single Single Single Single Twin Twin Twin
      Tyres 11.5/80x15.3 400/60x22,5 400/60x22,5 16.5/85x24 23.1x26 23.1x26 650/75Rx32 650/75rx32 600/50x22,5
      Single or Tandam Single Single Single Single Single Single Single Single Tandam
      Hyd Brakes Yes Yes Yes Yes Yes Yes Yes Yes No
      Removable Drawbar No No No No Yes Yes Yes Yes Yes
      Sprung Drawbar No No No No No No Yes Yes Yes
      Ground Drive 3 Speed Yes Yes Yes Yes Yes Yes N/A N/A N/A
      Tachometer Yes Yes Yes Yes Yes Yes N/A N/A N/A
      Floor Feed Width (mm) 730 730 730 730 730 730 730 730 730
      Axle Track 1600/1800 1600/1800 1600/1800 2000 2000 2000 2000 2200 2200
      Square (mm) 70 70 70 70 90 90 140x140x14 140x140x14 120x120x12
      Roll Tarp. Yes Yes Yes Yes Yes Yes Yes Yes Yes
      Stubs 6 6 6 6 10 10 10 10 10
      Production Material Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel Mild Steel
      Production Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
      Load Cells x x x x x x ✓ ✓ ✓
      ECU (Electronic Control) ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
      ECU + Basic Display ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
