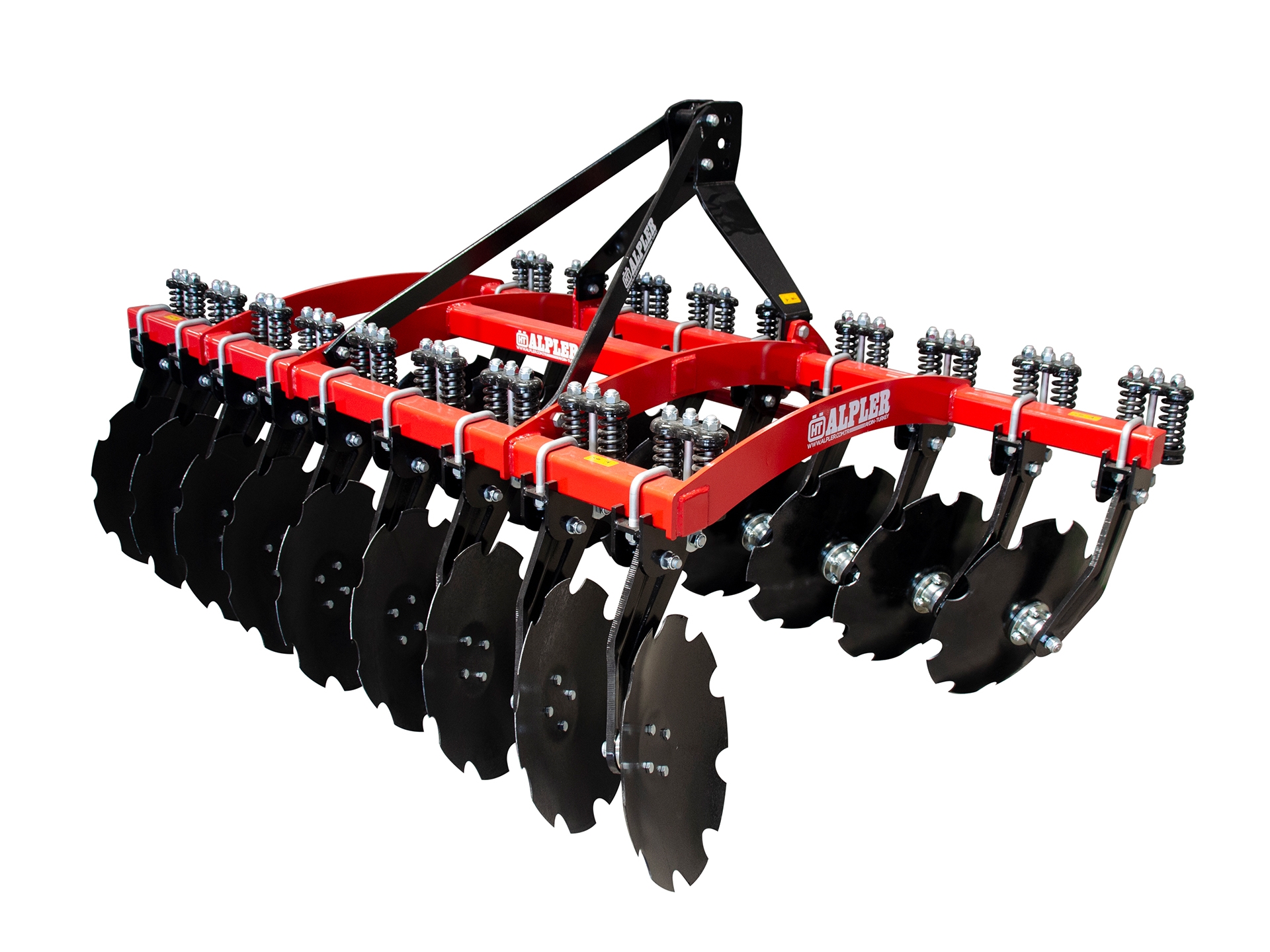

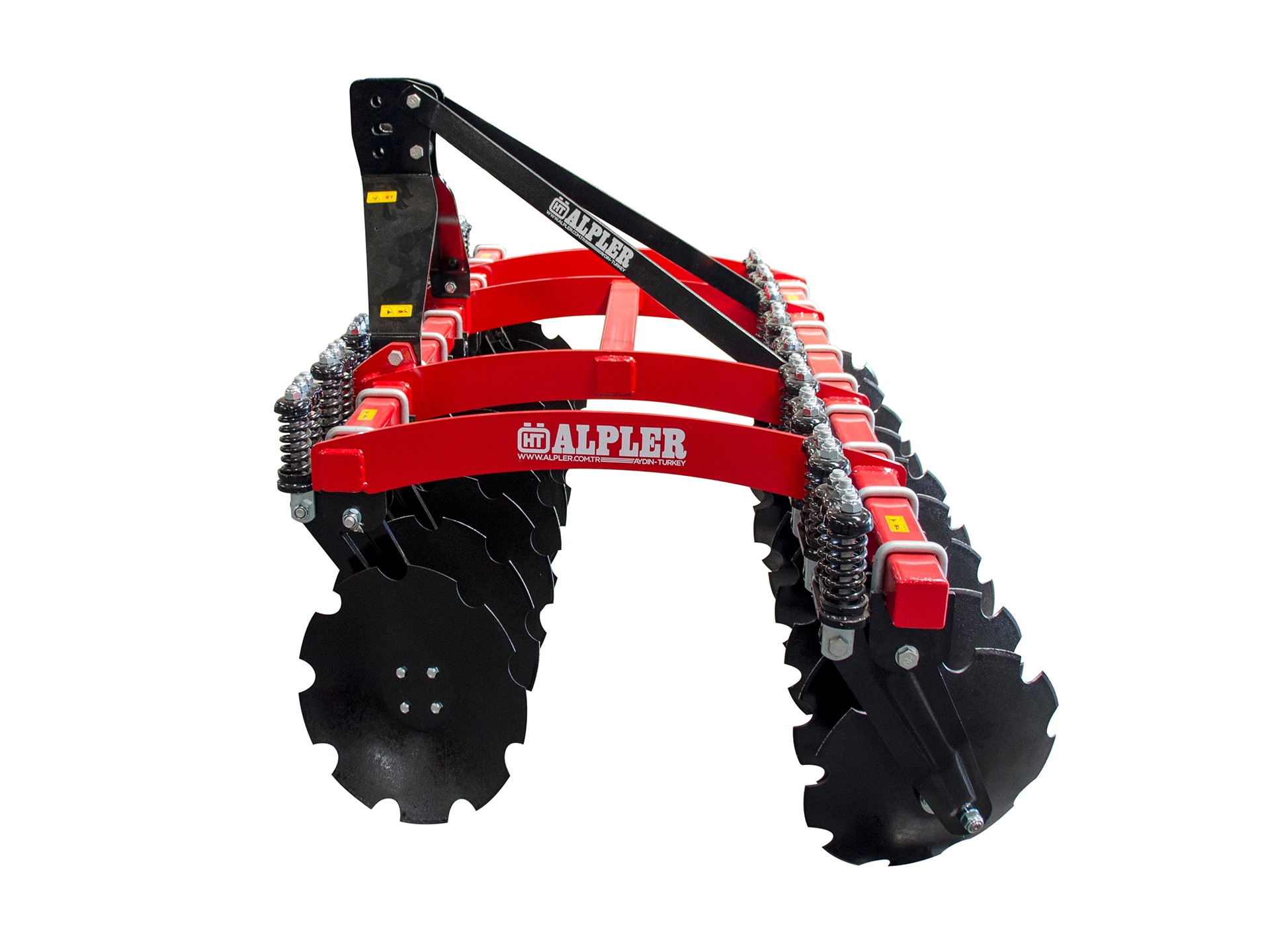

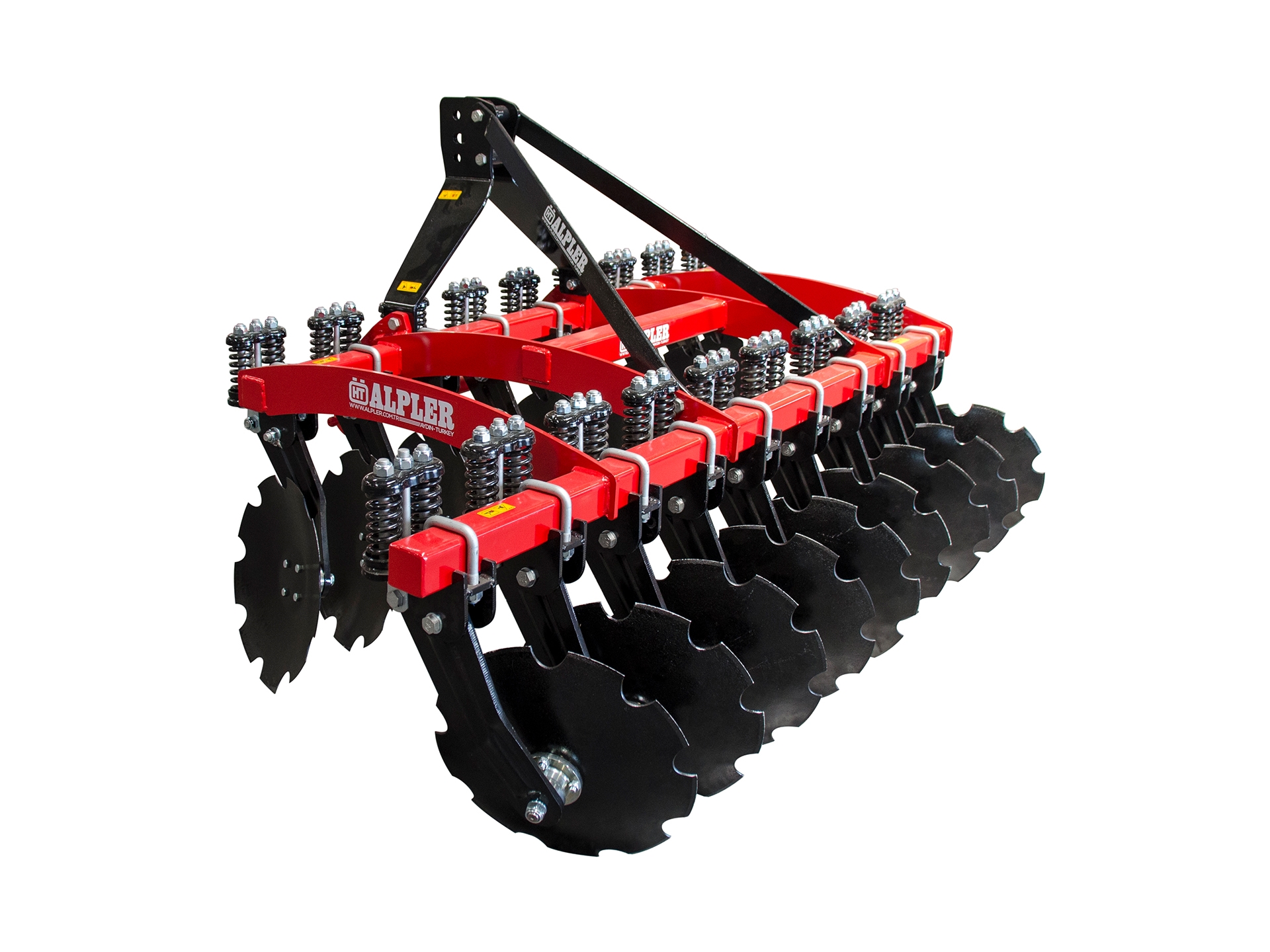

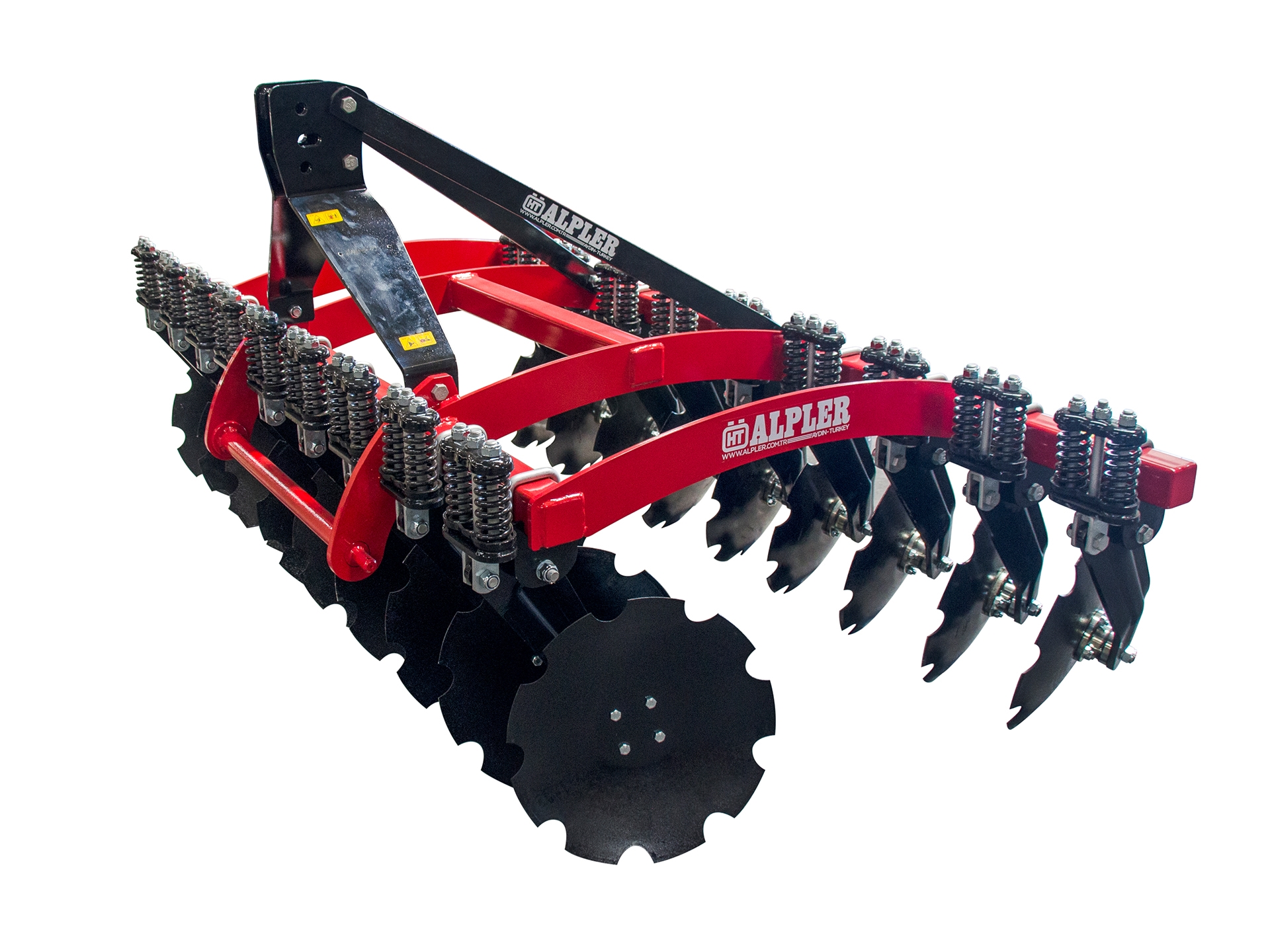

Compact Disc Harrow (Mini Model)

Alpler - Mini Bağımsız Diskaro
Alpler - Mini Bağımsız Diskaro
Alpler - Mini Bağımsız Diskaro
Alpler - Mini Bağımsız Diskaro
      • High resistible, heat treated notched  discs.
      • Increased inter-disc  spacing preventing trash built  up.
      • Hydrolic  folding  rear roller to reduce the transport length  for easy and safe transportation. Maintenance-free high-quality bearing  units.
      • Durable stone safety release via rubber   elements.
    •  Model  NUMBER OF DISCS (PIECES)   CLEARANCE (CM)    DISC DIAMETER (MM)   DISTANCE BETWEEN BEAMS (CM)    DISTANCE BETWEEN DISCS(CM)   WEIGTH (KG)   POWER REQUIREMENT (HP)
       BDH-16-510 (Mini Model)  16 200 510 100 25 590 40-50
       BDH-18-510 (Mini Model)  18 225 510 100 25 670 50-60
      BDH-20-510 (Mini Model) 20 250 510 100 25 765 60-70
      BDH-22-510 (Mini Model) 22 275 510 100 25 830 70-80
      BDH-24-510 (Mini Model) 24 300 510 100 25 900 80-100
      • When placing an order, add the number of throws to the end of model code.
      • Upon the needs of customers we keep the right to make changes on the product specifications.
