PRODUCT DESCRIPTION
OPTIONAL PARTS
TECHNICAL SPECIFICATIONS
PRODUCT BROCHURE & USER GUIDE
SPARE PARTS GUIDE
VIDEO

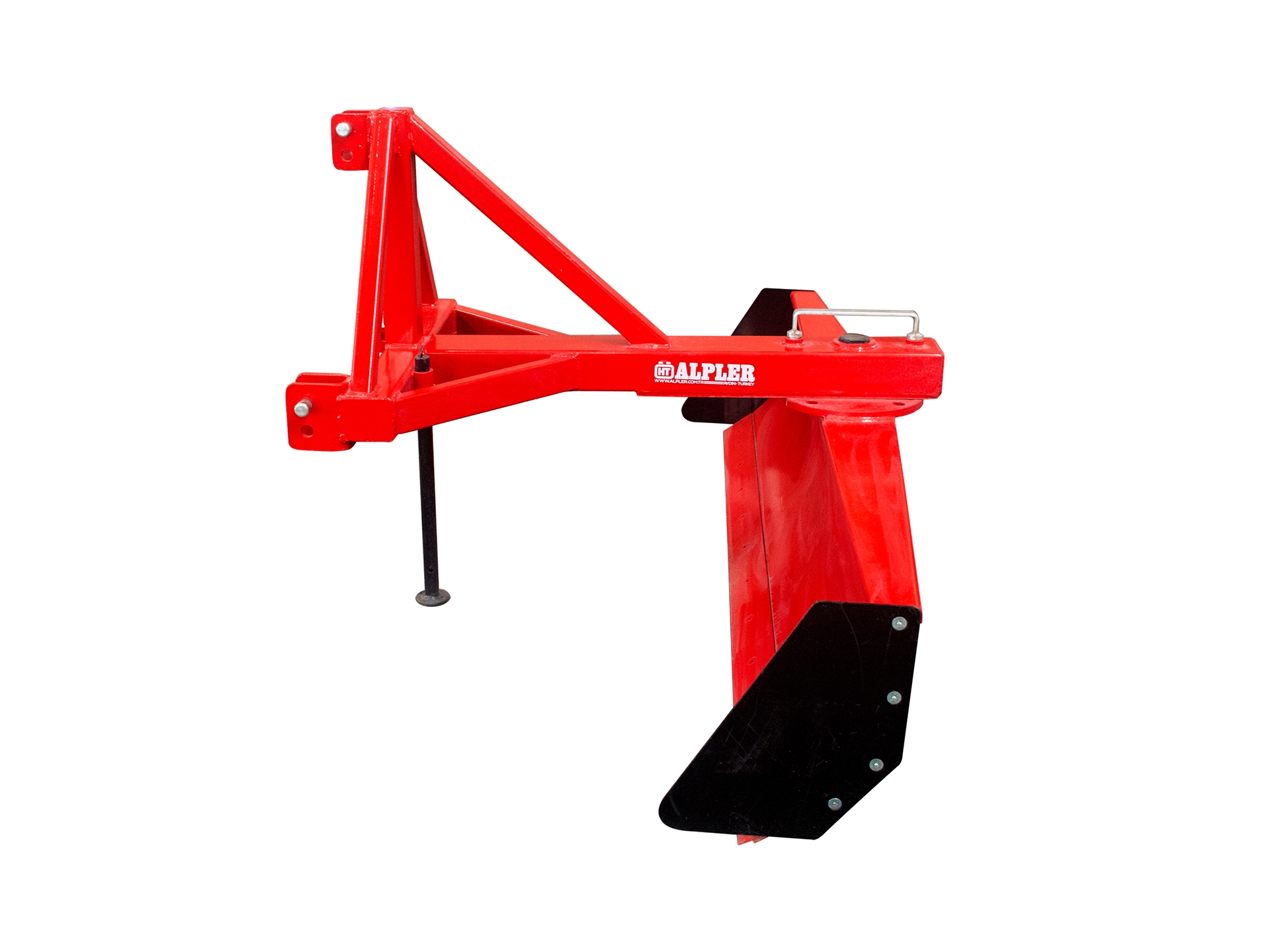

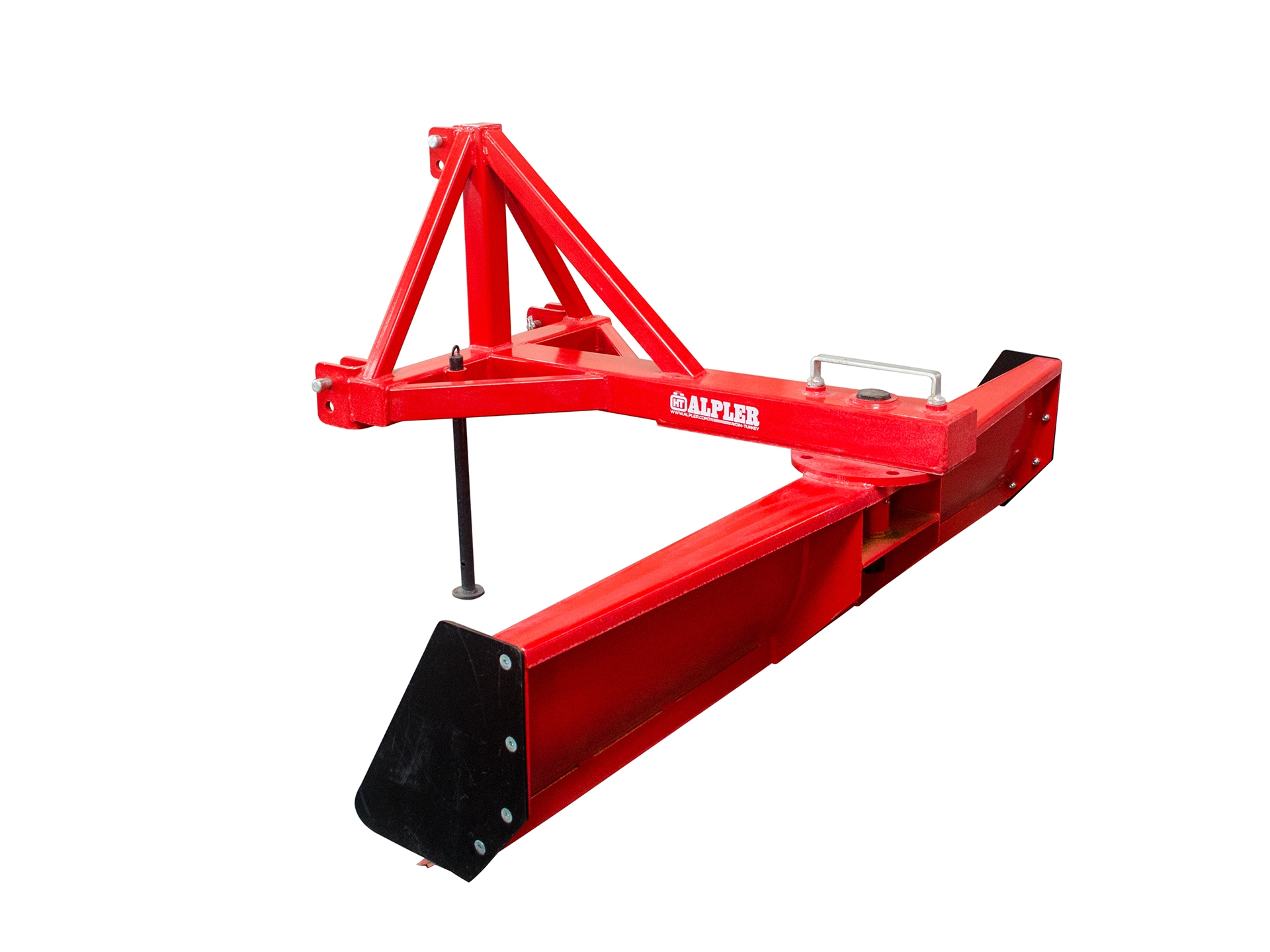

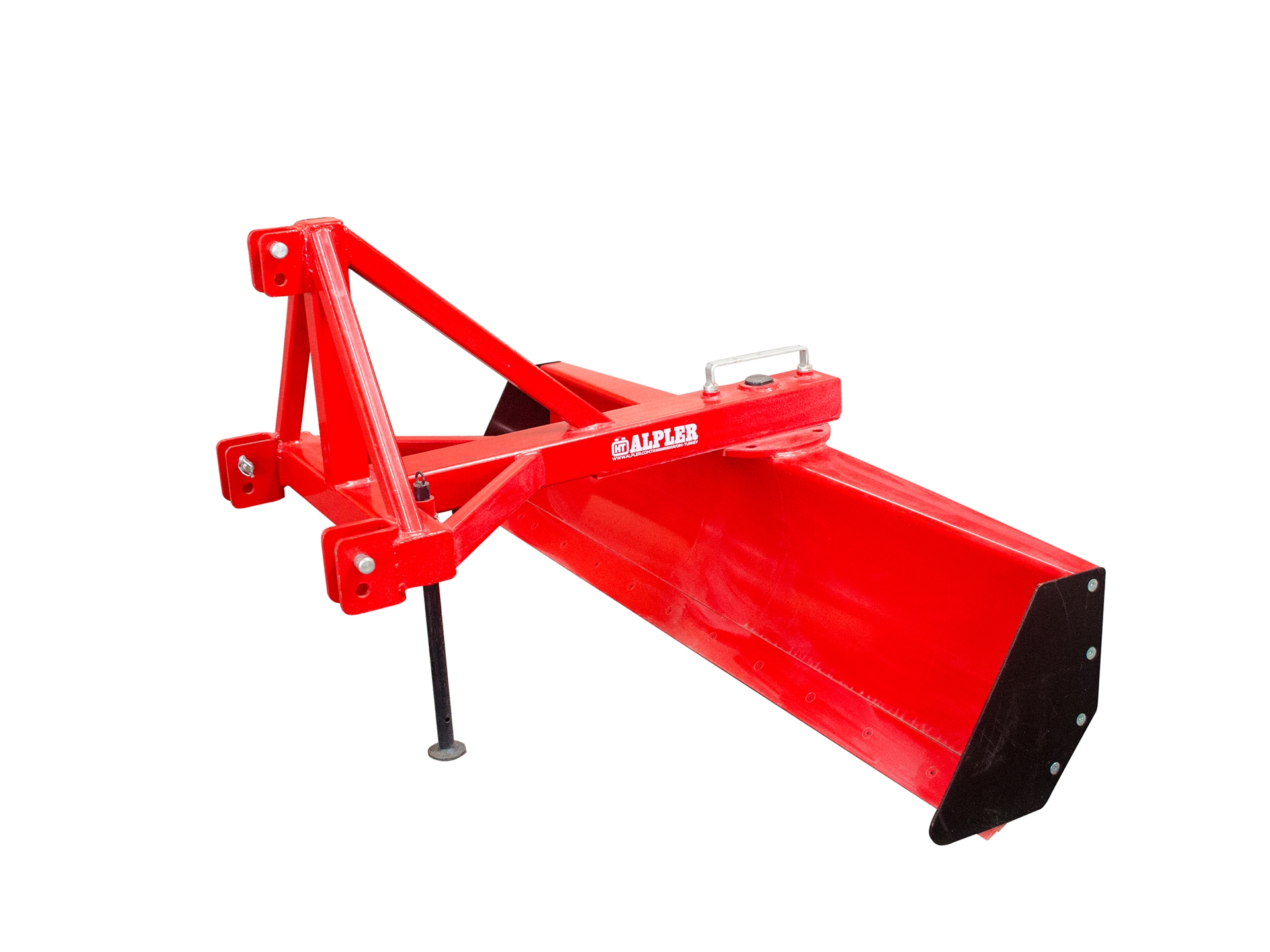

Ideal for light road maintenance, lawn care, gardening and other light duty landscaping applications, leveling ground and snow and manure removal.
TKL rear blades feature a reversible and replaceable heat treated 12 mm thickness cutting edge.
Rear blades are CAT 2 (Standard) or CAT 1 (Optional) hitch compatible and the parking stand is standard equipment for ease of montage and safety.
Bolted end plates allow holding extra material while dragging it from one place to another for filling.
Effective due to the high, correctly shaped blade design 50 em height with 6 mm thickness.
It allows to cut and roll the soil rather than drag it, saving your time, HP and fuel.
360 degrees pivoting blade with 5 forward and 5 reverse angle positions, locking with 2 locking pins.
Model
WORKING WIDTH (CM)
WEIGTH
(KG)
POWER REQUIREMENT
(HP)
TKL100
100
165
15-25
TKL120
120
175
15-25
TKL140
140
200
15-25
TKL160
160
220
25-35
TKL180
180
230
25-35
TKL200
200
250
35-50
TKL220
220
266
40-50
TKL240
240
279
50-60
TKL250
250
275
50-60
TKL300
300
310
60-80
When placing an order, add the number of throws to the end of model code.
Upon the needs of customers we keep the right to make changes on the product specifications..
